Using a factored representation for each state: a set of variables, each of which has a value.
CSP search algorithms use general-purpose (rather than problem-specific) heuristics to enable the solution of complex problems.
The main idea is to eliminate large portions of the search space all at once by identifying assignments that violate the constraints.
A CSP is defined by:
- Variables: $(X = {X_1, \dots, X_n})$
- Domains: $(D = {D_1, \dots, D_n})$ where each $(D_i)$ lists possible values for $(X_i)$
- Constraints: ($C = {C_1, \dots, C_m}$) specifying allowed combinations of values The task is to find a complete assignment $(A: X \to \bigcup D)$ such that every constraint is satisfied.
#Domains
Consist of allowable values for a variable:
- $D_i$ represents values for $X_i$, expressed as ${v_1, …, v_k}$
- For example:
- For a boolean Xi, Di would be {true, false}
- For a int Xi between 0 and n, Di would be {0, 1, …, n}
Domains can be:
- Discrete or continuous
- Finite or infinite
- With linear constraints or non-linear constraints
#Constraints
Consist of a scope and relation: <scope, rel>
-
Scope: tuple of variables that participate
-
Relation (rel): defines the values that the variables can take.
-
<(X1, X2), {(3,1), (3,2), (2,1)}>
-
<(X1, X2), X1 > X2>
Types of Constraints:
- Unary
- restrict the value of a single variable
- Binary
- relates to two variables
- Binary CSPs only include binary and unary constraints
- N-ary constraints can always be expressed as binary constraints
- Global
- involve an arbitrary number of variables
AllDiff- if m variables have n distinct values, and m > n, there is an inconsistency
- remove singleton variables value from other variables domain
- repeat until there are no more singleton variables
- if there is an empty domain, there is an inconsistency
Atmost(or resource constraint)Atmost(N, X1, X2,...,Xk) → Sum(X1,...,Xk) < N- We can delete the maximum value of a domain if it is not consistent with the minimum value of the others
- Preference
- encoded as costs on an individual variable assignment
#Variables
Assignment of variables: {$X_i = v_i, X_j = v_j, …$}
- Partial assignment
- leaves some variables unassigned
- Complete
- all variables have a value
- Consistent (legal)
- variable assignments don’t violate any constraints A solution is a consistent and complete assignment.
- Partial solution is a partial assignment that is consistent.
#Examples

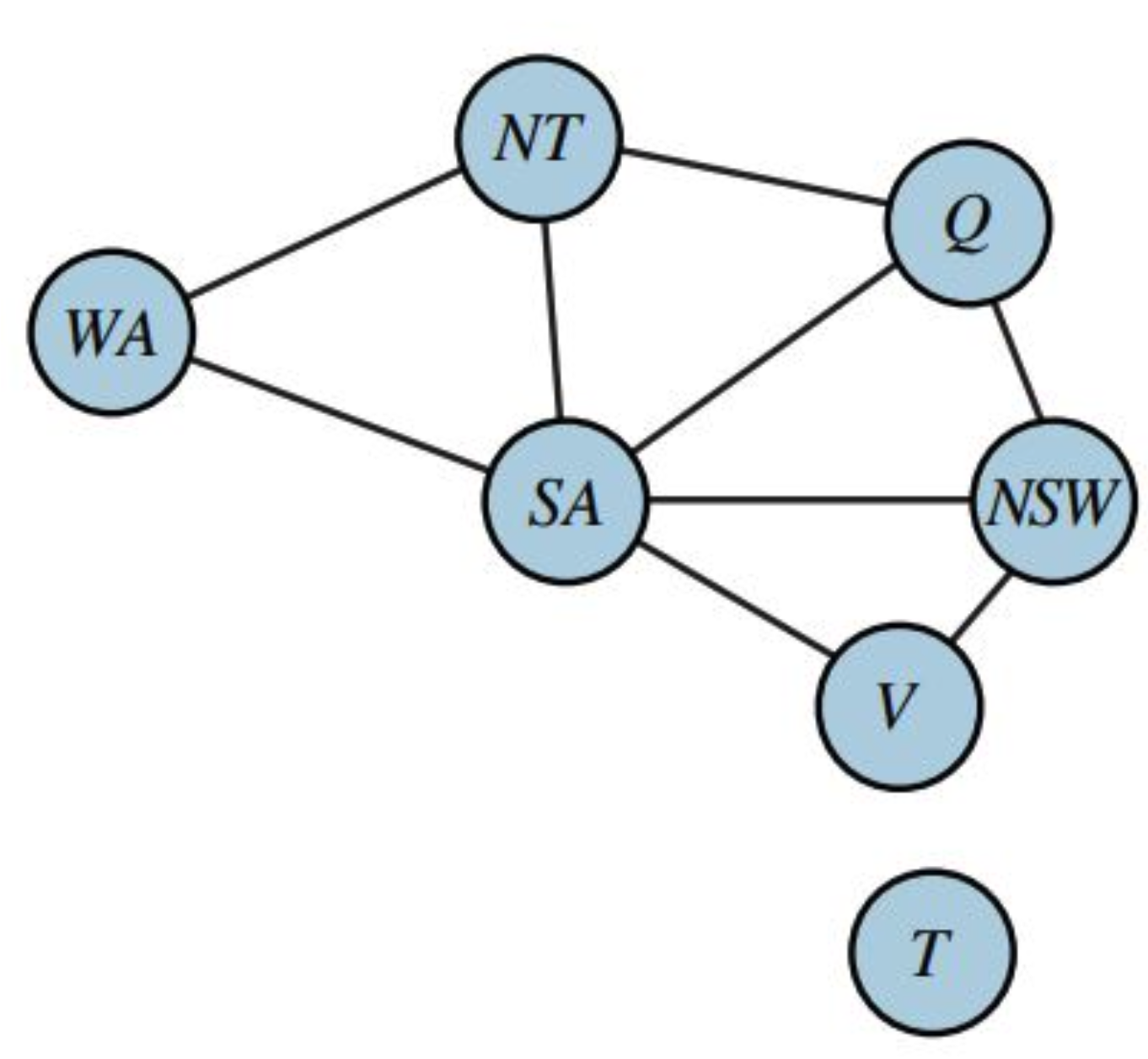

#Map Coloring
Color the map where each state is green, red, or blue, and no adjacent states are the same color.
#Job-shop Scheduling
- Schedule the assembly of a car, by fulfilling tasks
- Each task can be described as a variable, with a start time
- Task might need to happen in certain order
- Task will take some amount of time to complete
Car assembly with 15 tasks: X = {$Axle_F, Axle_B, Wheel_{RF}, Wheel_{LF}, Wheel_{RB}, Wheel_{LB}, Nuts_{RF}, Nuts_{LF}, Nuts_{RB}, Nuts_{LB}, Cap_{RF}, Cap_{LF}, Cap_{RB}, Cap_{LB}, Inspect$}
Conditional Plan
