Long Short-Term Memory

Recurrent Neural Networks designed to remember long-term dependencies using memory cells and gating mechanisms.

• Use: time-series forecasting, text generation, stock prediction, speech recognition.
• Data flow: data flows through memory cells with forget, input, and output gates controlling information retention.
• Structure: Input Layer → LSTM units (memory cells with gates) → Output Layer
• Activation Function: Tanh/ReLU for memory cells, Sigmoid for gates, Softmax for classification.
• Loss Function: cross-entropy loss for classification, MSE for regression
• Learning: Gradient Descent and BPTT
• Pros
  • solves vanishing gradient problem
  • good at capturing long-term dependencies
• Cons
  • slower training
  • computationally expensive
  • requires more memory

#Architecture

• RNNs have memory, but it’s limited due to the intrinsic constraints of the hidden state size and backpropagation through time (BPTT)
• RNNs can make predictions based on the near past but fail when these predictions depend on data that is relatively distant from the past.

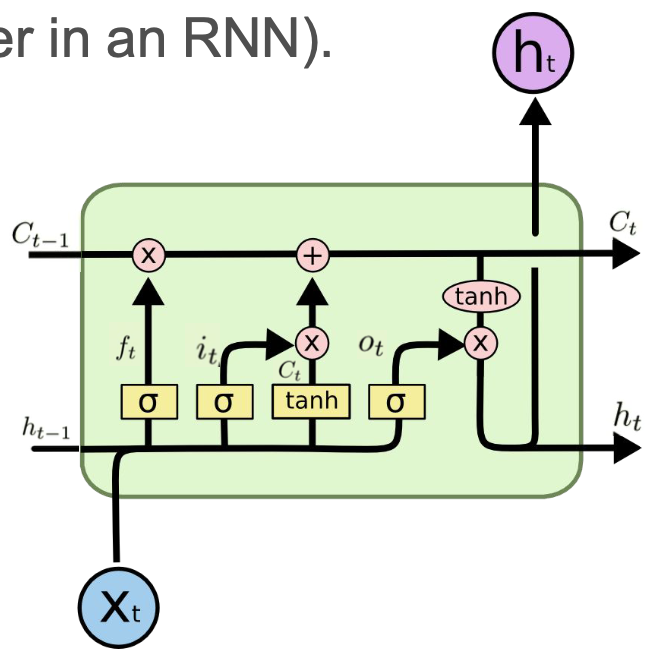

• LSTMs are a special kind of RNN, capable of learning long-term dependencies using a cell with four layers (instead of the single layer in an RNN)
• Layers consist of gates and pointwise operations
  • Forget gate $f(t)$
  • Input gate $i_t$
  • Update cell state $C_t$
  • Output gate $O_t$

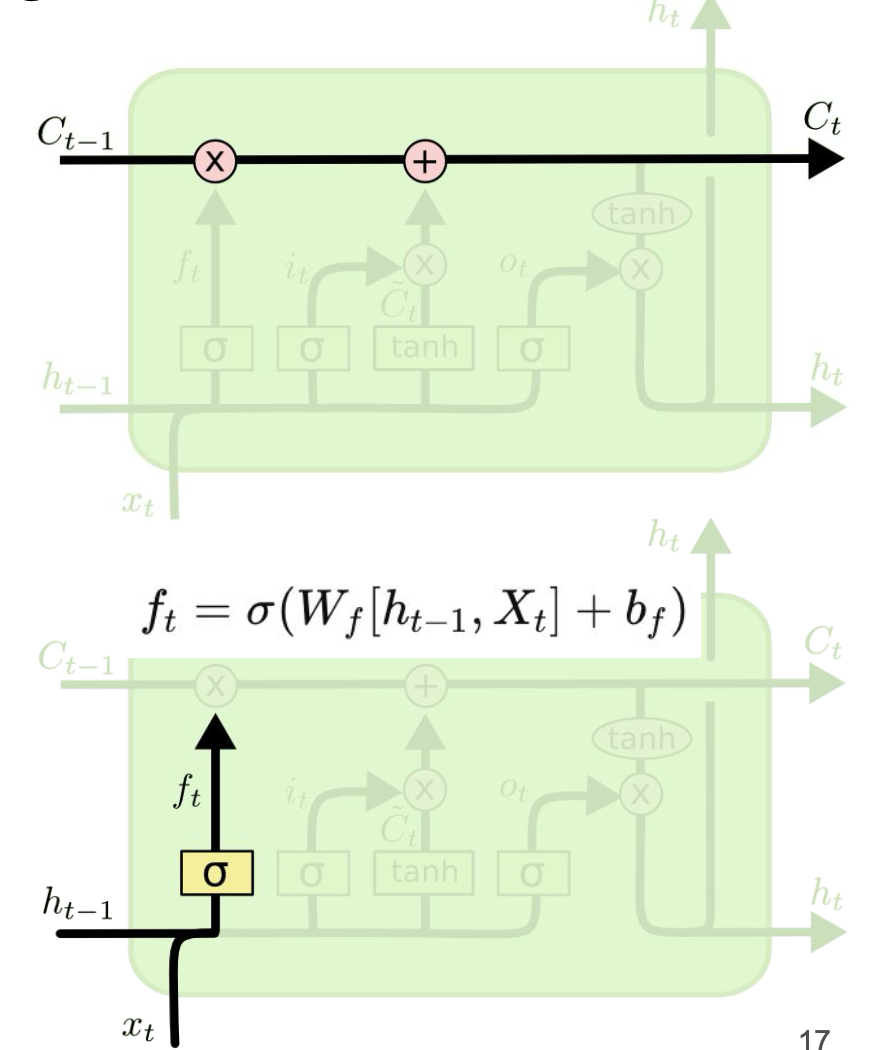

#Forget Gate

• Cell State
  • the horizontal line running through the top of the diagram.
• Gate
  • Gates control adding/removing information to/from the cell state.
  • Sigmoid neural net layer + pointwise multiplication. Outputs number between zero and one; 0 = close gate; 1 = open gate.
• Forget Gate Layer
  • decides how much of the past $C_{t-1}$ state should be discarded.
  • Current input at time $t$
  • $X_t$: current input at time $t$
  • $h_{t-1}$: previous hidden state
  • $W_f$: forget gate weight matrix
  • $b_f$: forget gate bias
  • $\sigma$: sigmoid activation function

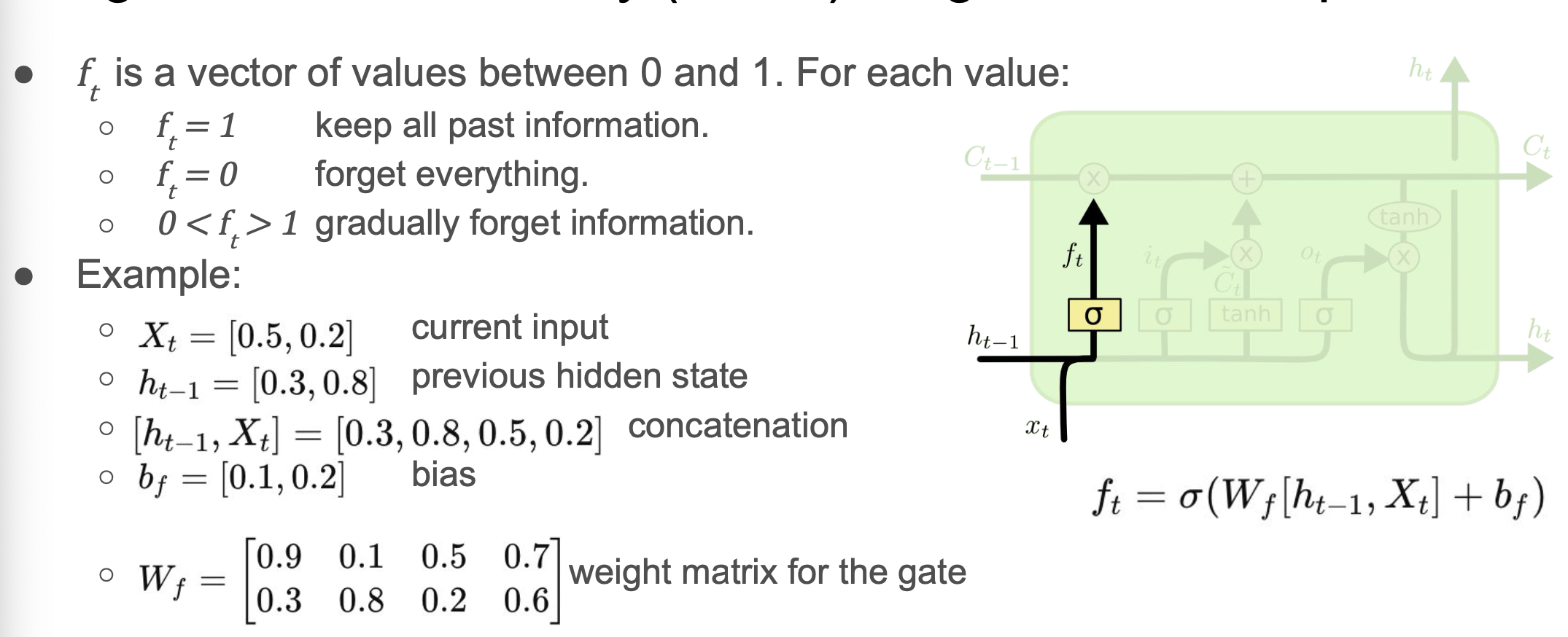

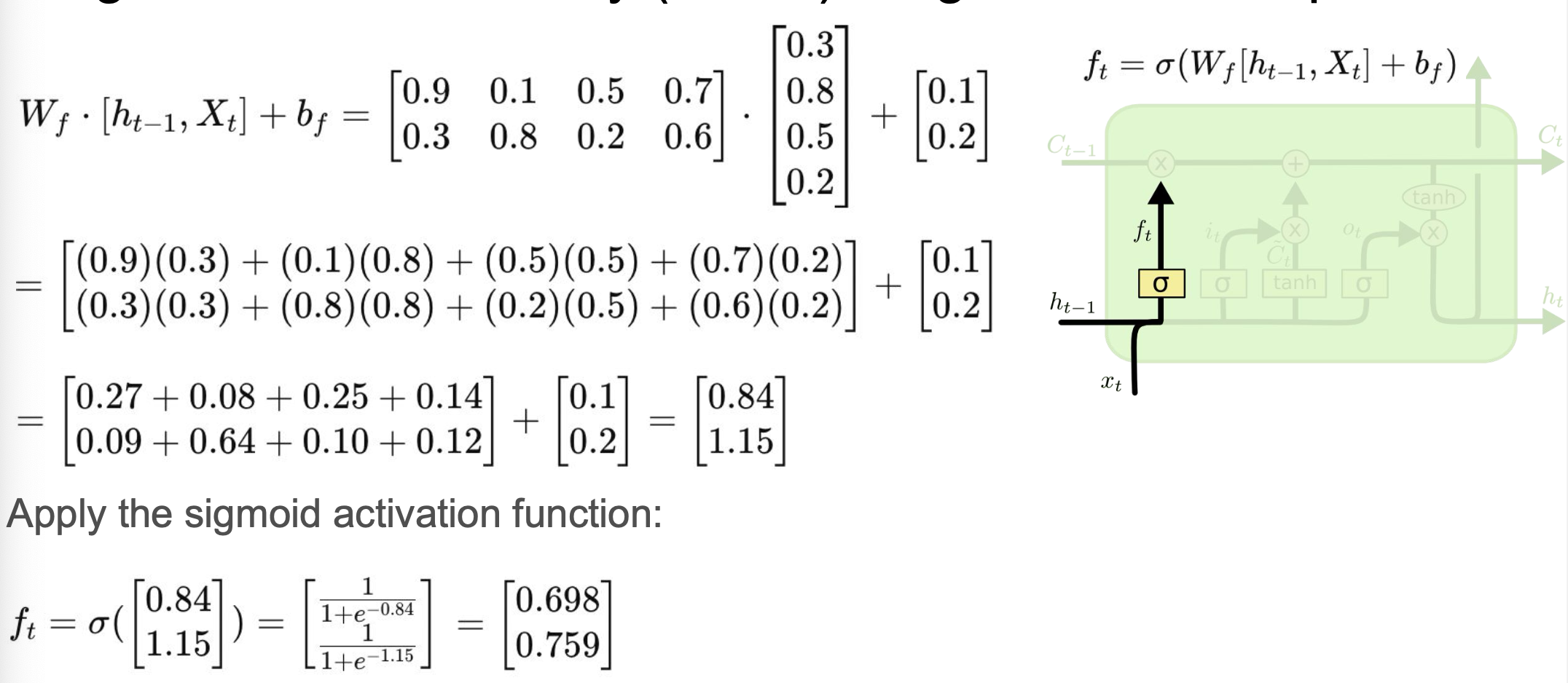

#Forget Gate Example

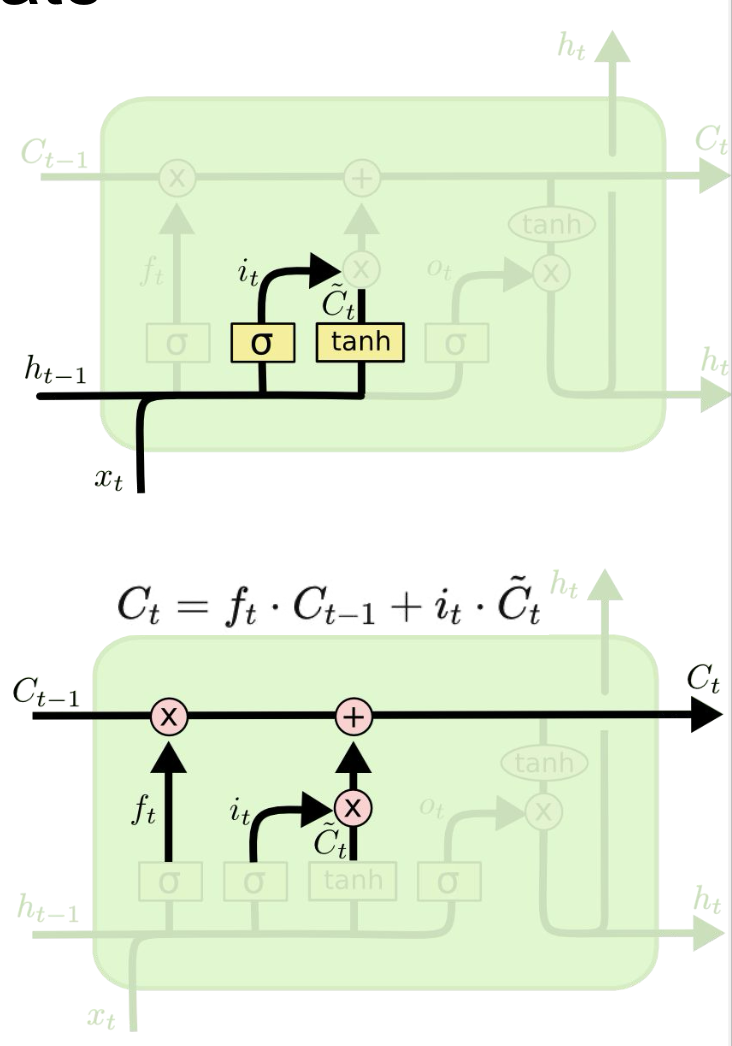

#Input Gate

• New information we’re going to store in the cell state.
• Input gate
  • decides which values we’ll update
  • $i_t = \sigma \left( W_i \cdot [h_{t-1}, x_t] + b_i \right)$
• Tanh layer
  • creates a vector of new candidate values $\tilde{C}_t$, that could be added to the cell state.
  • $\tilde{C}t = \tanh \left( W_C \cdot [h{t-1}, x_t] + b_C \right)$
• Update the old cell state
  • We multiply the old state by $f_t$, forgetting the amount of details computed by the forget gate.
  • We add $i_t \cdot \tilde{C}_t$, i.e. the new candidate values, scaled by how much we decided to update each state value.

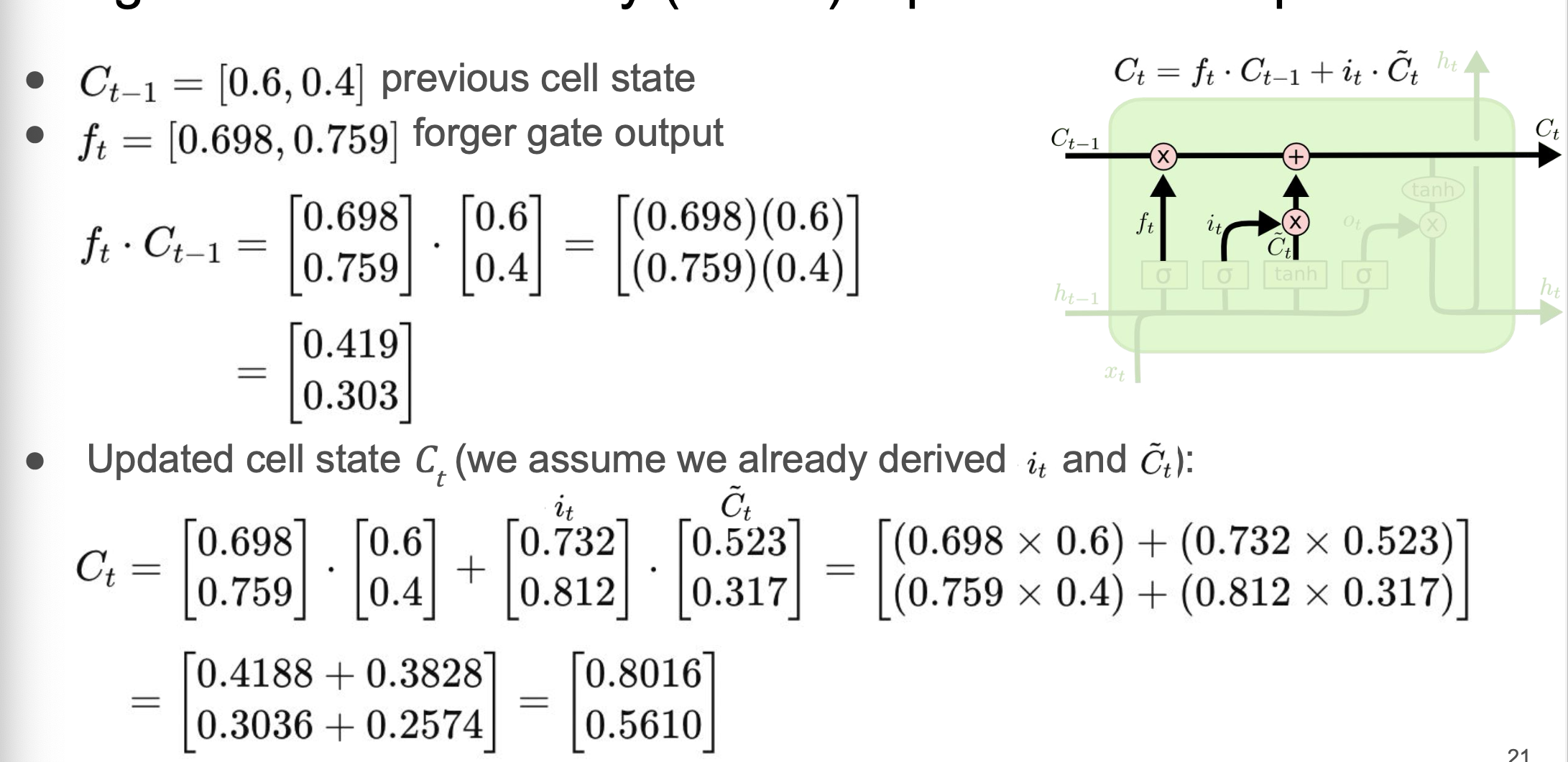

#Input Gate Example

#Output Gate

• Final step: compute the hidden state $h_t$.
• Output is based on filtering our cell state:
• Sigmoid layer: decides what cell state is outputted $o_t = \sigma(W_o [h_{t-1}, X_t] + b_o)$
• Tanh activation function: push cell state between -1/1
• Multiply the output by activated cell state to output only the chosen part of the cell state.
• $h_t = o_t \ast \tanh(C_t)$
• Example, substituting the previous values we get:

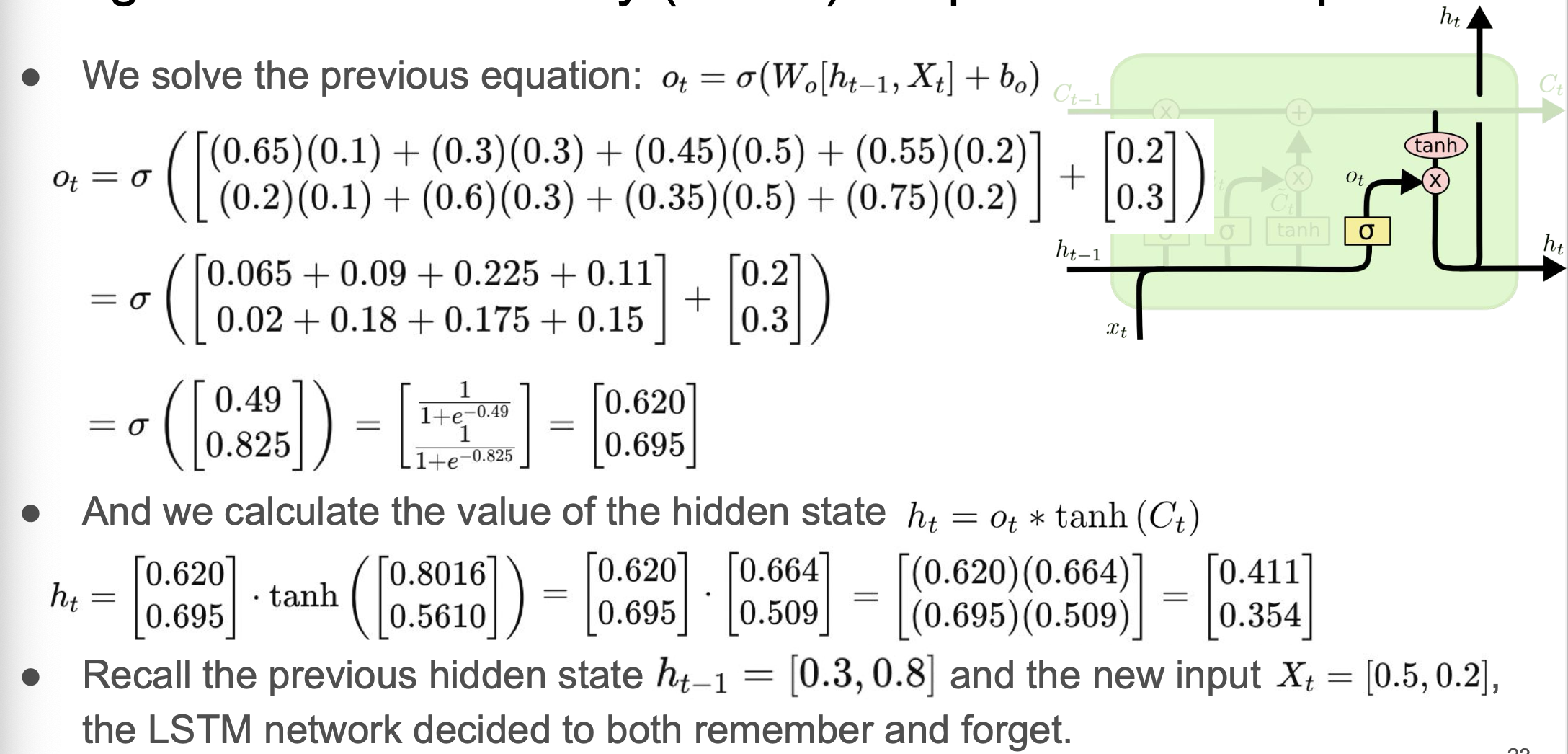

#Output Gate Example
