Registers

Registers

  • Small and temporary storage unit inside a computer’s central processing unit (CPU) that holds data for immediate processing.
  • Small amounts of fast storage.
  • Some registers have specific hardware functions, and may be read-only or write-only.
  • Computers load items from a larger memory into registers.

Used for

  • Arithmetic operations
  • Bitwise operations
  • Other operations
  • Manipulated or tested by machine instructions.

Manipulated items are then often stored back to main memory, either by the same instruction or by a subsequent one.

Modern high-performance CPUs often have duplicates of these “architectural registers” to improve performance via register renaming, allowing parallel and speculative execution.

#Load/Store (Risc)

Memory access is limited to explicit load (move data from memory to a register) and store (move data from a register to memory) instructions. All arithmetic and logical operations are performed on registers.

Example: ARM, MIPS, RISC-V.

#Advantages

  • Simplicity: Instructions are simple and uniform, making the processor easier to design and optimize.
  • Pipelining: The uniformity of instructions allows for efficient pipelining, improving performance.
  • Energy Efficiency: Fewer memory accesses reduce power consumption.

#Disadvantages

  • More Instructions: Programs may require more instructions to perform the same task, as data must be explicitly loaded into registers before operations.
  • Code Size: Programs can be larger due to the need for explicit load/store instructions.

#Register/Memory (CISC)

Instructions can directly operate on memory operands, in addition to registers.

Arithmetic and logical instructions can access memory directly, without requiring explicit load/store instructions.

Example: x86, Intel processors.

#Advantages

  • Fewer Instructions: Programs can be more compact, as a single instruction can perform both memory access and computation.
  • Flexibility: Direct memory access simplifies certain programming tasks.

#Disadvantages

  • Complexity: Instructions are more complex, making the processor harder to design and optimize.
  • Inefficient Pipelining: Variable instruction lengths and memory access times can complicate pipelining.
  • Higher Power Consumption: Frequent memory accesses increase power usage.

#Basic Registers

  • Accumulator Registers temporarily hold the result of arithmetic / logic operations.

  • Address Registers temporarily hold memory addresses.

  • Data registers temporarily hold data to later be processed.

  • AF: (8-bit accumulator) A and flag bits (F) carry, zero, minus, parity/overflow, half-carry (used for BCD), and an Add/Subtract flag (usually called N) also for BCD.

  • BC: 16-bit data/address register or two 8-bit registers

  • DE: 16-bit data/address register or two 8-bit registers

  • HL: 16-bit accumulator/address register or two 8-bit registers

  • SP: stack pointer, 16 bits

  • PC: program counter, 16 bits

  • LR: link register.

#ARM Registers

ARM processors have 37 registers

  • 30 general-purpose, 32-bit registers
    • 15 always visible: r0-r12
  • SP
  • LR: the Link register, aka r14, used to store the subroutine’s return address.
    • when an exception occurs, the version of r14 in the exception mode is set to the address after the instruction is executed.
  • The Program Counter (PC): used to determine which instruction will be executed next. The PC is referred to as an instruction pointer because it stores the address of the next instruction.
  • The Application Program Status Register (APSR): holds copies of the Arithmetic Logic Unit (ALU) status flags
  • Saved Program Status Registers (SPSRs), hold copies of CPSR when an exception is taken
    • the APSR flags
    • the current processor mode
    • interrupt disable flags
    • current processor state (ARM, Thumb, ThumbEE, or Jazelle)
    • execution state bits for the IT block.

#Inter Registers

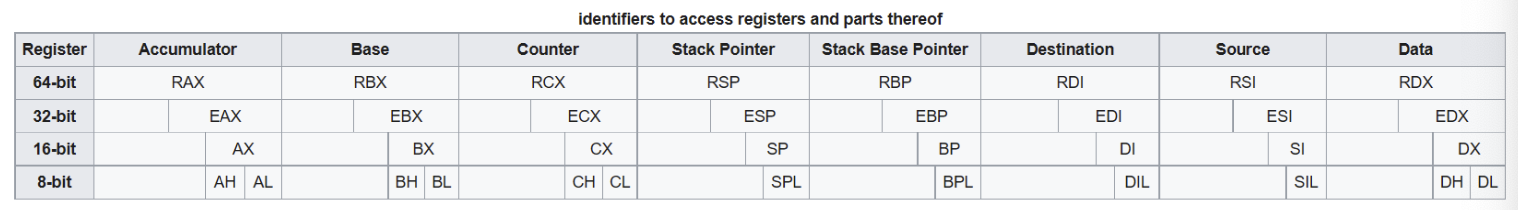

The 8 GPRs are as follows:

  • Accumulator register (AX). Used in arithmetic operations. Opcodes combining constants into accumulator are 1-byte.
  • Base register (BX). Used as a pointer to data.
  • Counter register (CX). Used in shift/rotate instructions and loops.
  • Stack Pointer register (SP). Pointer to the top of the stack.
  • Stack Base Pointer register (BP). Used to point to the base of the stack.
  • Destination Index register (DI). Used as a pointer to a destination in stream operations.
  • Source Index register (SI). Used as a pointer to a source in stream operations.
  • Data register (DX). Used in arithmetic operations and I/O operations.
